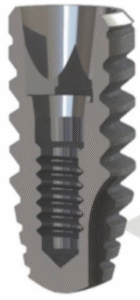

- • Various diameter: 3.7, 4, 4.5, 5 mm
- • Various length: 8, 10, 12, 14 mm
- • Suitable for treatment in beauty areas (Full esthetic)
- • Excellent primary stability and easy insertion
- • Compatible with maxillofacial anatomy with minimal bone loss
- • No micro threads
- • Having rough surface in the cervical zone
- • Special design of macro threads to have high efficiency
- • Immediate loading
- • Having stable and sealed biological connection
- • Easy & risk-free surgery using stopper drills

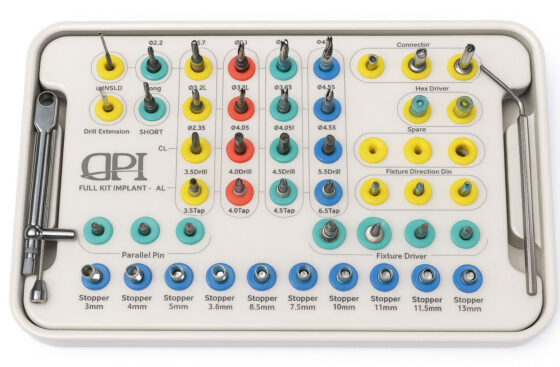

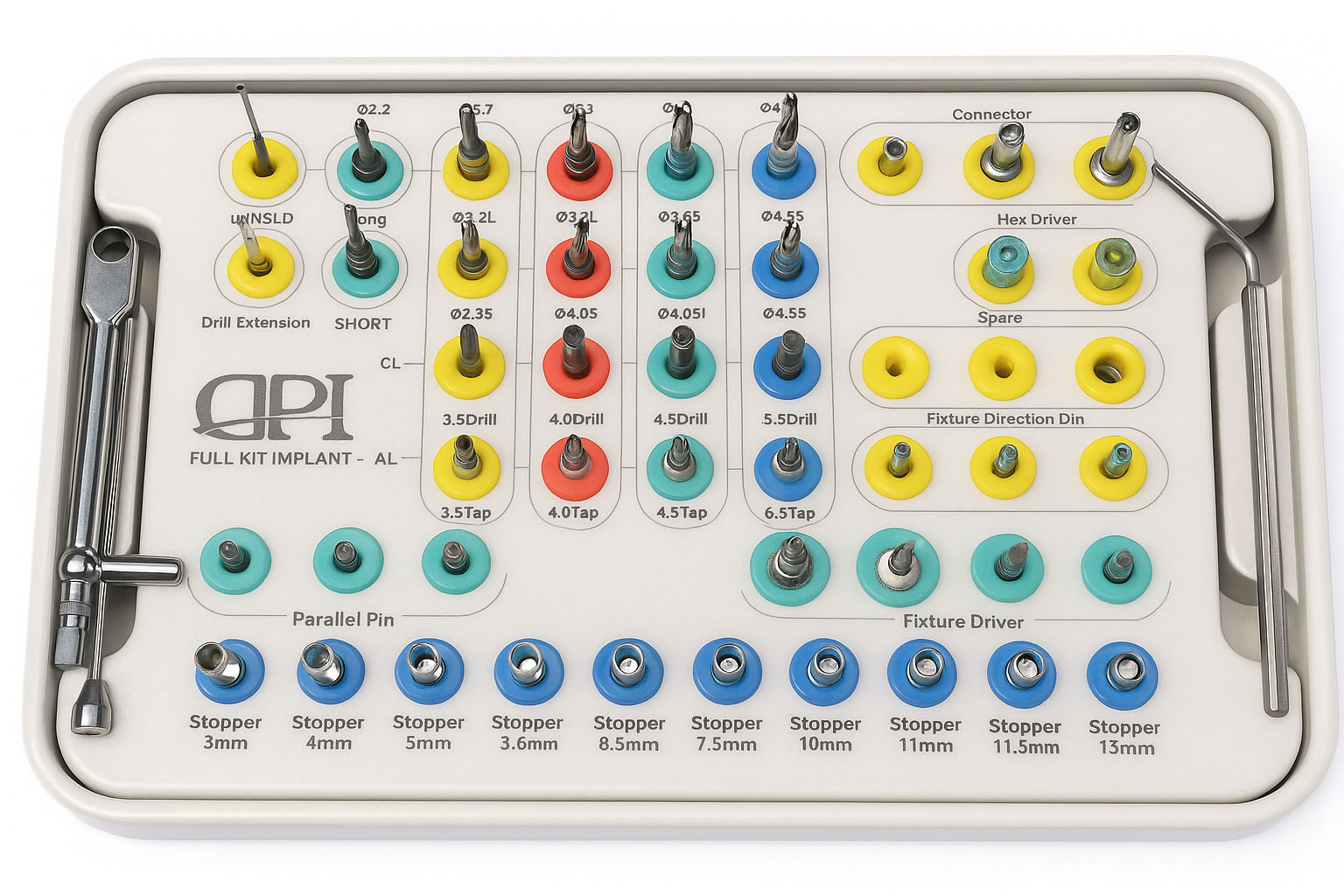

- • Complete and ease surgical kit of use
- • Special design to platform switching
- • Bone level implants in various diameters and lengths with the ability to be used in a variety of bone type
- • Internal Hex Connection

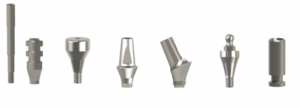

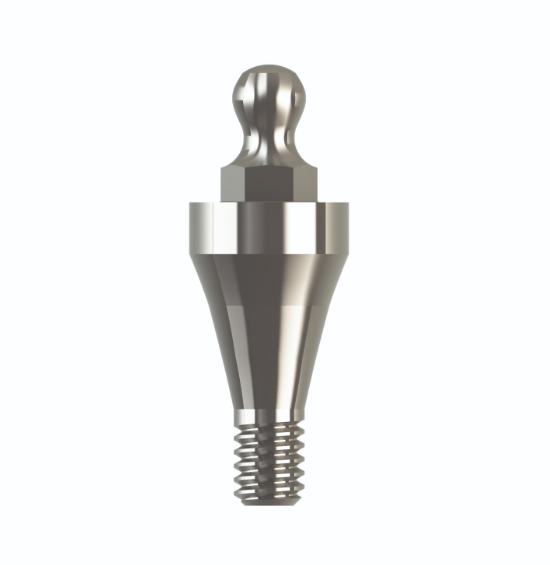

Ball Abutment is an abutment that helps to fix the prosthesis for various reasons, such as the ability to connect to the prosthesis.
Ball Abutments, like abutments, are offered in two diameters of 4.5 mm and 5.5 mm in the implant system of the company. And the variation of the height of gingiva height of the abutments changes from zero, the same level with edge and soft tissue up to 4.0 mm. Which allows it to be used for different positions in the mouth.
Ball Abutments exist in at least 3 separate sections, including a cap that is embedded inside the prosthesis and comes with the prosthesis. And plastic housing is provided to control and fix the movement of the prosthesis. At present, all parts are produced in company.
Ball Abutment

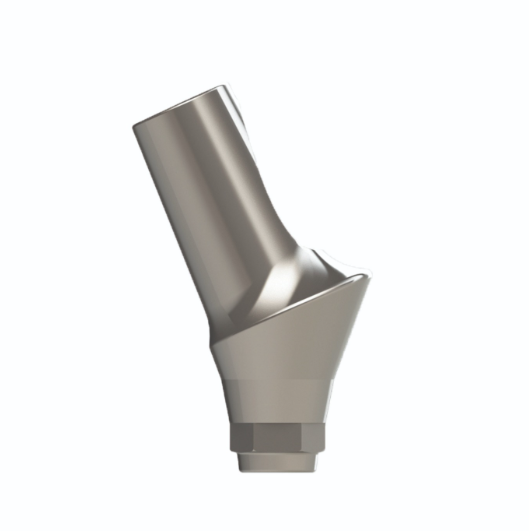

Angular abutments in DP model with high mechanical strength and various heights and angles, suitable for prosthetic treatment by observing aesthetic principles, compatible with the installation of fixtures on the jaw with various angles, having a stable biological connection with easy prosthetic techniques and It is safe and can be used in a variety of jaws and is made of titanium grade 5 medical.
Learn More
Angular abutments

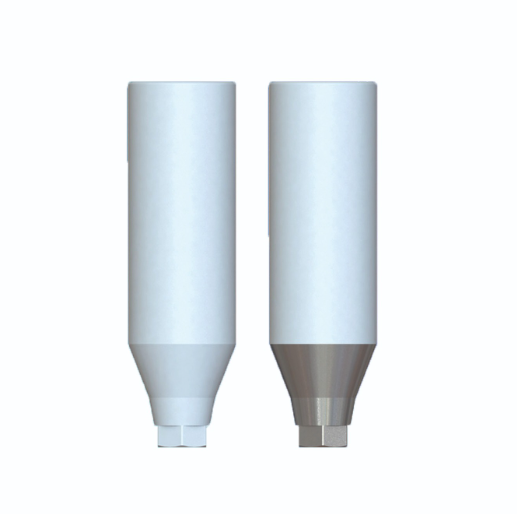

The UCLA (Universal Clearance Lateral Angulation) abutment is an important component in dental implant systems and is widely used in the fabrication of dental prostheses due to its unique design, which allows for high precision and optimal fit. These abutments are specifically designed for situations that require customization and precise coordination between the implant and the prosthesis. Below, we will discuss the features, applications, and advantages of UCLA abutments.
Learn More
UCLA

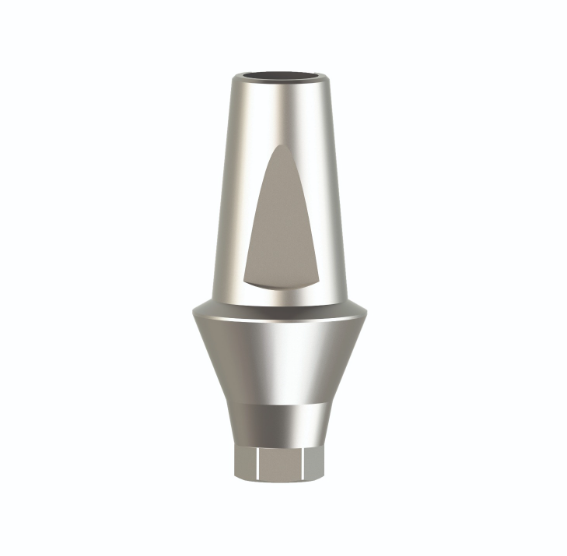

Straight abutment in DPI+ model with high mechanical strength and various heights, are suitable for prosthetic treatment by observing aesthetic principles, compatible with implantation of fixtures on the jaw, and with having a stable biological connection with easy and safe prosthetic techniques and usability in Jaws, these pieces very feasible and they are made of titanium grade 5 medical.
Learn More
Straight Abutment

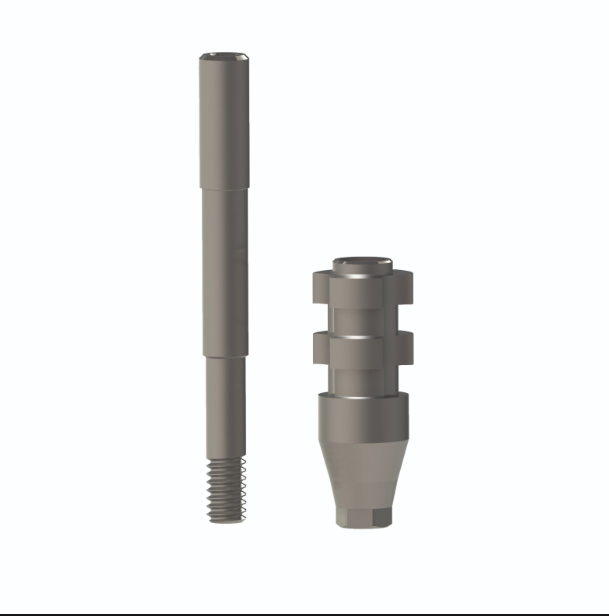

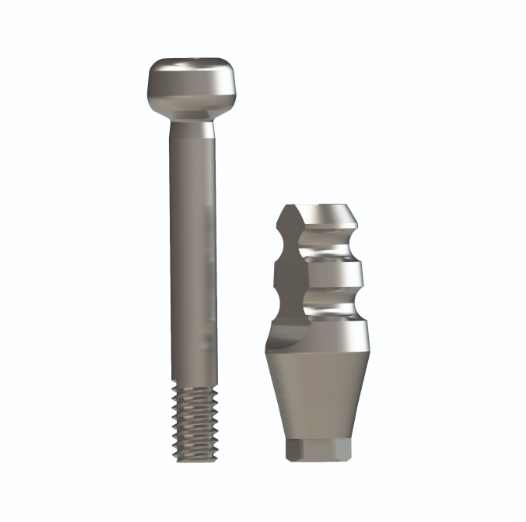

Open Tray Impression is one of the impression techniques used in dental implants to accurately capture the position and angulation of the implants. This method is typically used when implants are placed at different or non-parallel angles, or when a high level of accuracy is required in the impression.
Learn More
Impression
SLA
By sandblasting method, first with particles of different materials including aluminum oxide or titanium oxide with a diameter of 150 microns or soluble materials such as hydroxyapatite or sulfate or phosphate compounds that are sprayed with appropriate pressures on the surface of the implant trunk And causes disruption at the implant surface.
SL2A
Based on the SLA level, which is an extended system of sandblasts and is presented as:
Sand blast/ Large grit/ Acid etching / Anodizing
Is known. In this washing method, acid etching and anodizing take place in a wider dimension.
Surface treatment method, due to the preparation of implant surface for biological adhesion by developing related growing function that results from the use of this feature in most implant brands, the company used the SLA technique to treat the surface of its implants, Which causes high prosthesis respond at implant surface. It is also surface anodizing to spread the titanium oxide of interest on the implant surface.
A
Surface porosity between 4 to 6 microns is the result of etching with hot acid at 130° C and with very dense pores is the result of sandblasting with 150 micron particles of aluminum oxide.
B
Innovation at the implant surface includes SL2A implant surface means Sandblasting/ Large grit/ Acid etching/ Anodizing. Which is company specific
C
The average prosthesis of the implants produced by the company is 4.5 microns on average in the cervical, trunk and apical areas of the implant. Which is one of the implants with rough surface
D
With anodizing process, a very strong layer of titanium oxide with a diameter of 180 angstroms spreads evenly. Which is very effective in the hydrophilicity process and the surface of the implant becomes positive ions and absorbs negative ion elements in the blood and shortens the period of integration with the jaw bone.

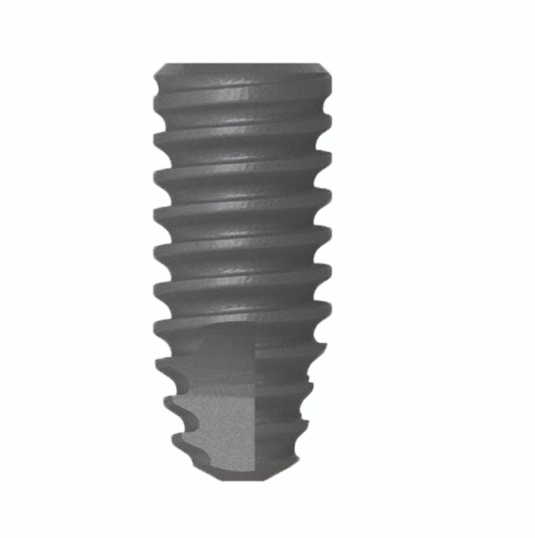

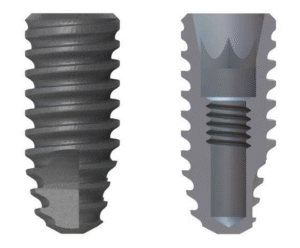

The fixtures produced by company in DPI model have excellent initial stability and easy placement feature, suitable for treatment in aesthetic zone areas, compatible with jaw anatomy with minimal bone resorption, having a stable biological connection with easy and safe surgery and can be used in different types of bones and The material is medical titanium grade 5.
Learn More
Fixture

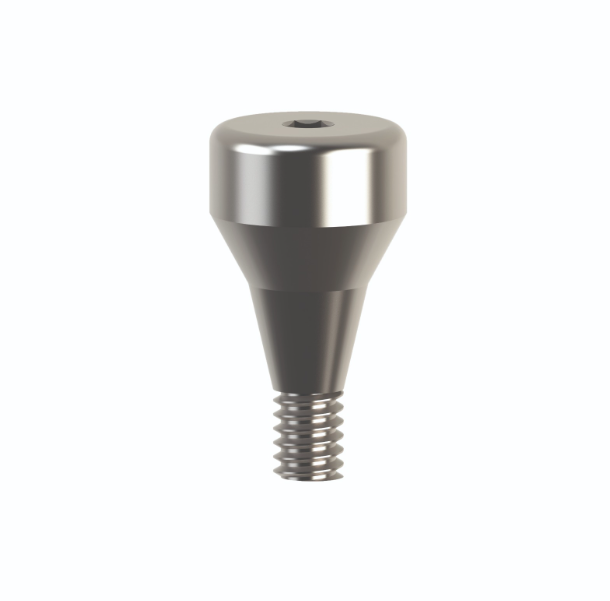

Healing is a tool that is attached to a fixture and is in the form of metal cylinders with a angled platform that are placed above the gums and the height of these tools is usually between 2 to 10 mm and it is made of grade 5 titanium. The use of healing in fixtures is very important.
Learn More
